Geo-Mattress Atlas Bariatric Mattress – 750 lb Capacity

Product Details

Progressive-Resistance Support for Bariatric Skin Protection

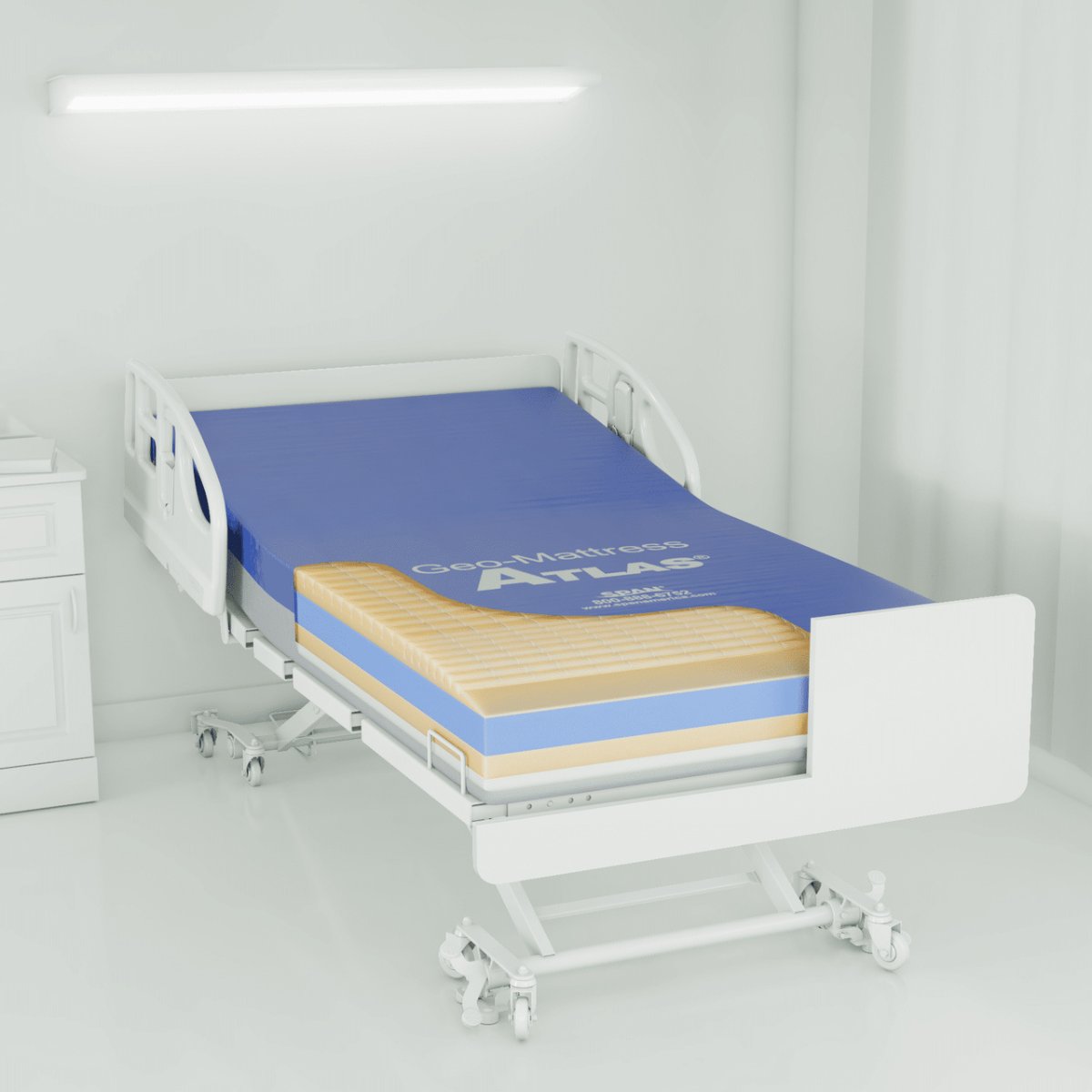

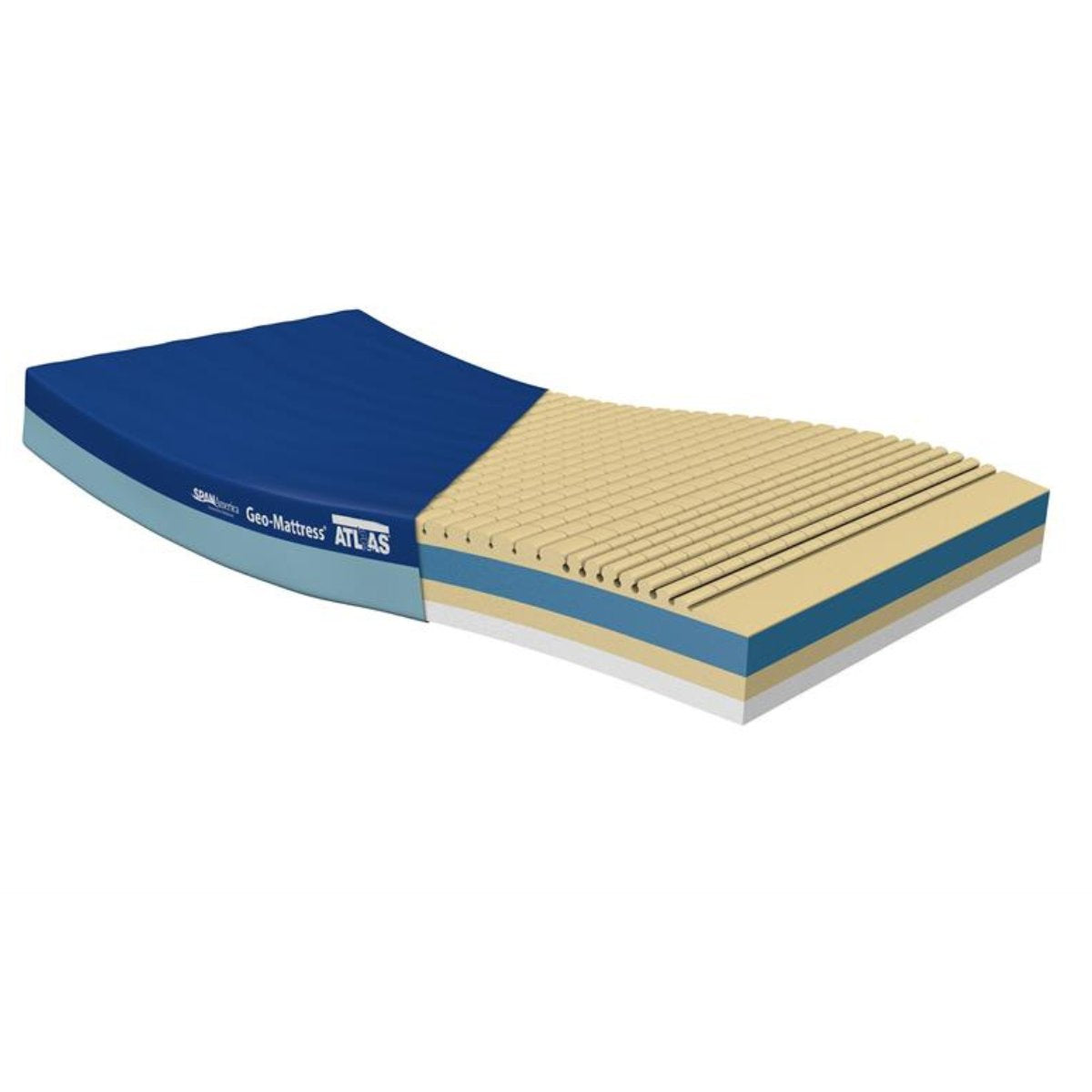

The Span-America Geo-Mattress® Atlas is purpose-built for bariatric patients requiring advanced skin protection and support. This clinically proven design features a progressive resistance core, where the softest, most patient-friendly layer rests closest to the skin, and the firmest base layer offers structural support. The top layer includes the exclusive Geo-Matt® anti-shearing surface, with over 800 independently responsive foam cells that help reduce friction, shear, and moisture. Beneath it, three high-resiliency foam layers offer staged deflection to accommodate a wide range of patient weights up to 750 lbs. A built-in Heel Slope® relieves pressure on the vulnerable heel area, and the entire mattress is wrapped in a fluid-resistant, easy-to-clean cover.

✅ Key Features:

Progressive Resistance Design: Layers deflect in stages—soft on top for comfort, dense on bottom for support

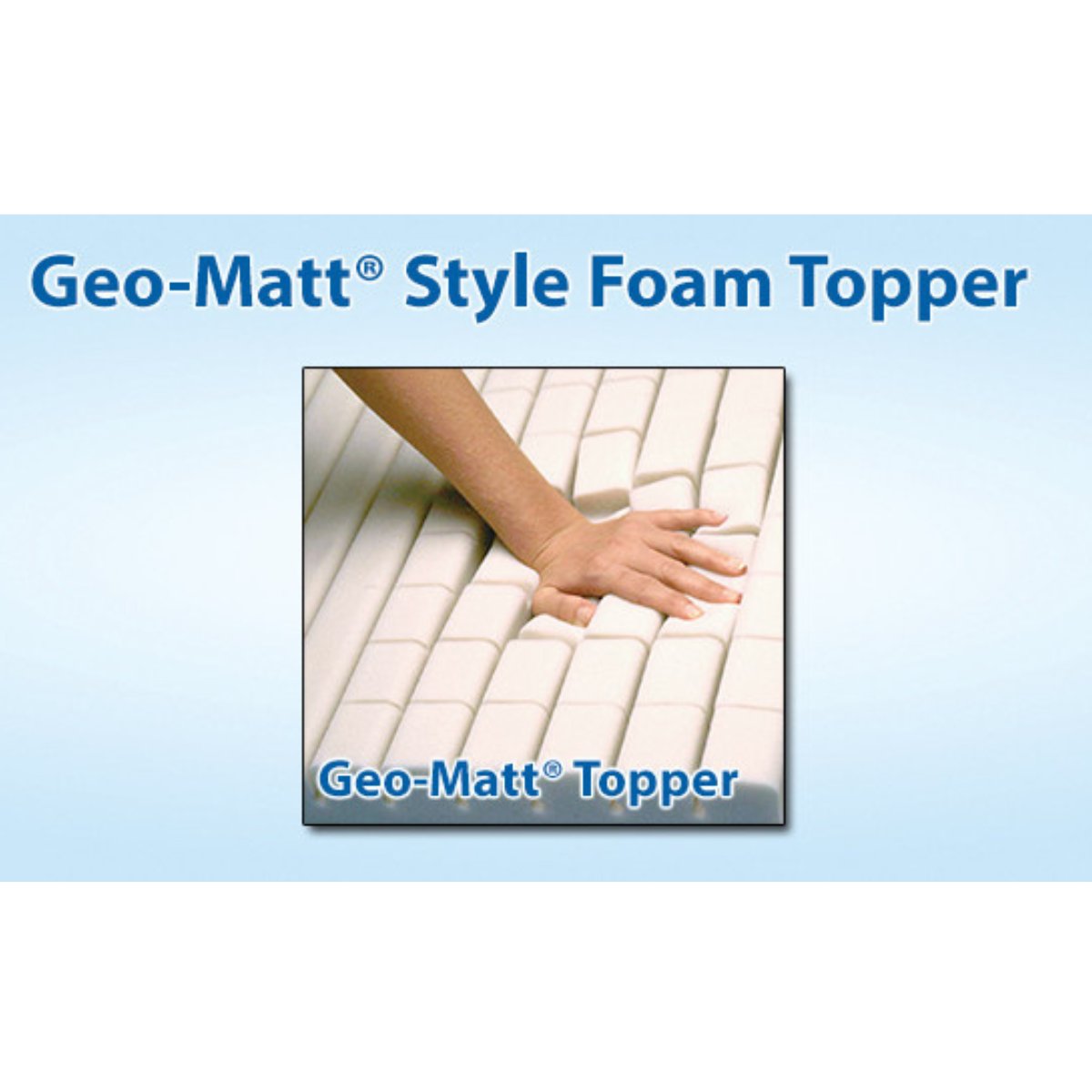

Geo-Matt® Surface: 2" foam topper with 800+ articulating cells redistributes pressure and reduces moisture buildup

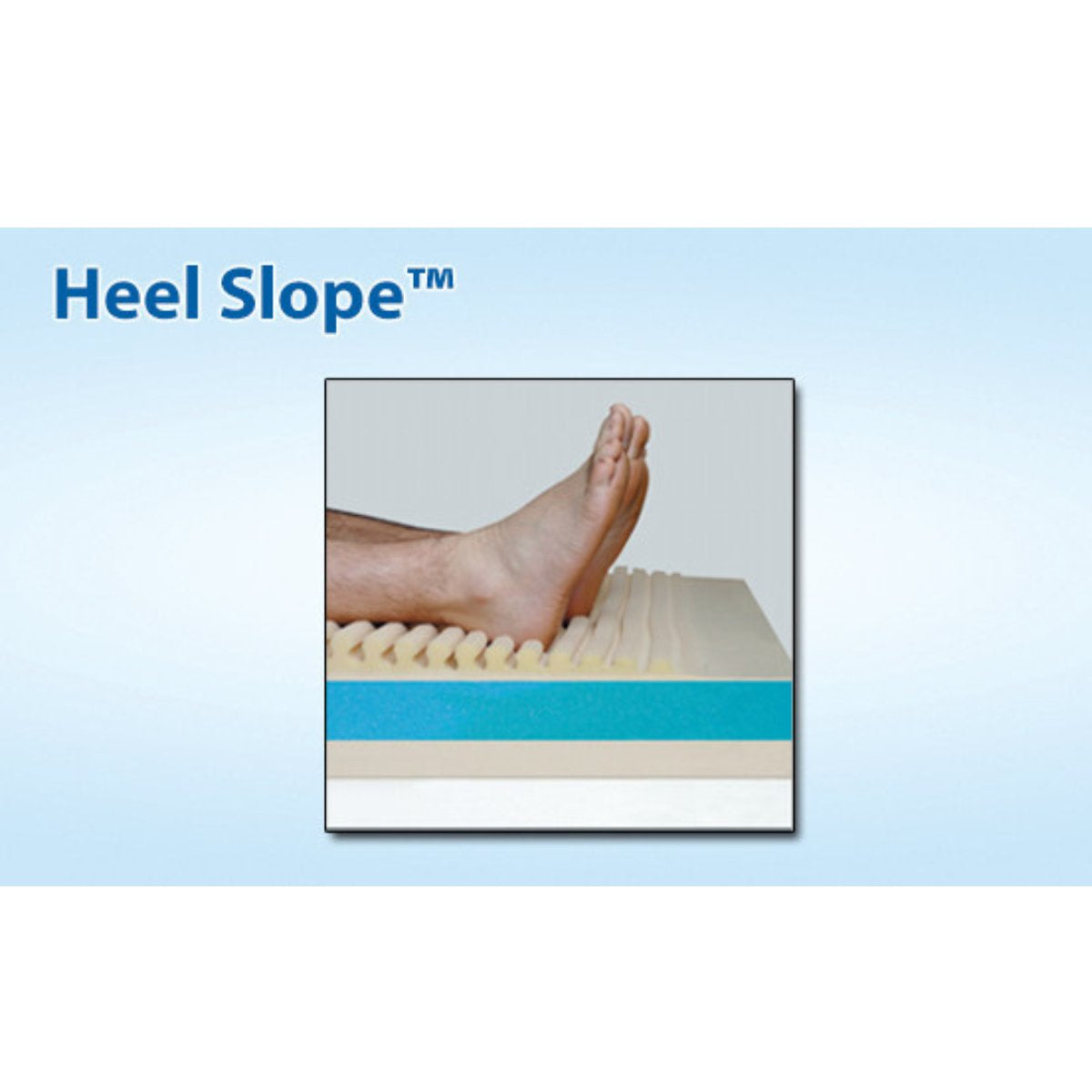

Heel Slope® Protection: Tapered slope shifts pressure off the heel and ankle, the second most common site of ulcers
Ring-of-Air™ Channels: Promote airflow to wick away heat and moisture
Durable Coated Cover: Fluid-proof, bacteriostatic, and easy to wipe clean
Multiple Size Options: Fits various bariatric frames in widths up to 54" and lengths up to 84"

❤️ Everyday Benefits You'll Appreciate

Reduces Skin Breakdown Risk: Combats shear, friction, and moisture in bariatric patients with limited mobility.
Comfort at Every Level: Designed to cradle lighter areas and support heavier zones using layered resistance.
Accommodates Larger Body Sizes: Offers proper immersion and envelopment even at the upper end of weight ranges.
Peace of Mind: Backed by a trusted brand and a 3-year non-prorated warranty.
Easy to Maintain: Just wipe the cover clean—no air pumps or electronics needed.

🛠️ Specifications

Specification	Details
Length Options	75", 80", 84"
Width Options	35", 39", 42", 48", 54"
Height	7" at center
Weight Capacity	600 lbs (35"), 675 lbs (39"), 750 lbs (42"+)
Mattress Weight	Approx. 36 lbs
Top Layer	2" Geo-Matt® foam with 800+ responsive cells

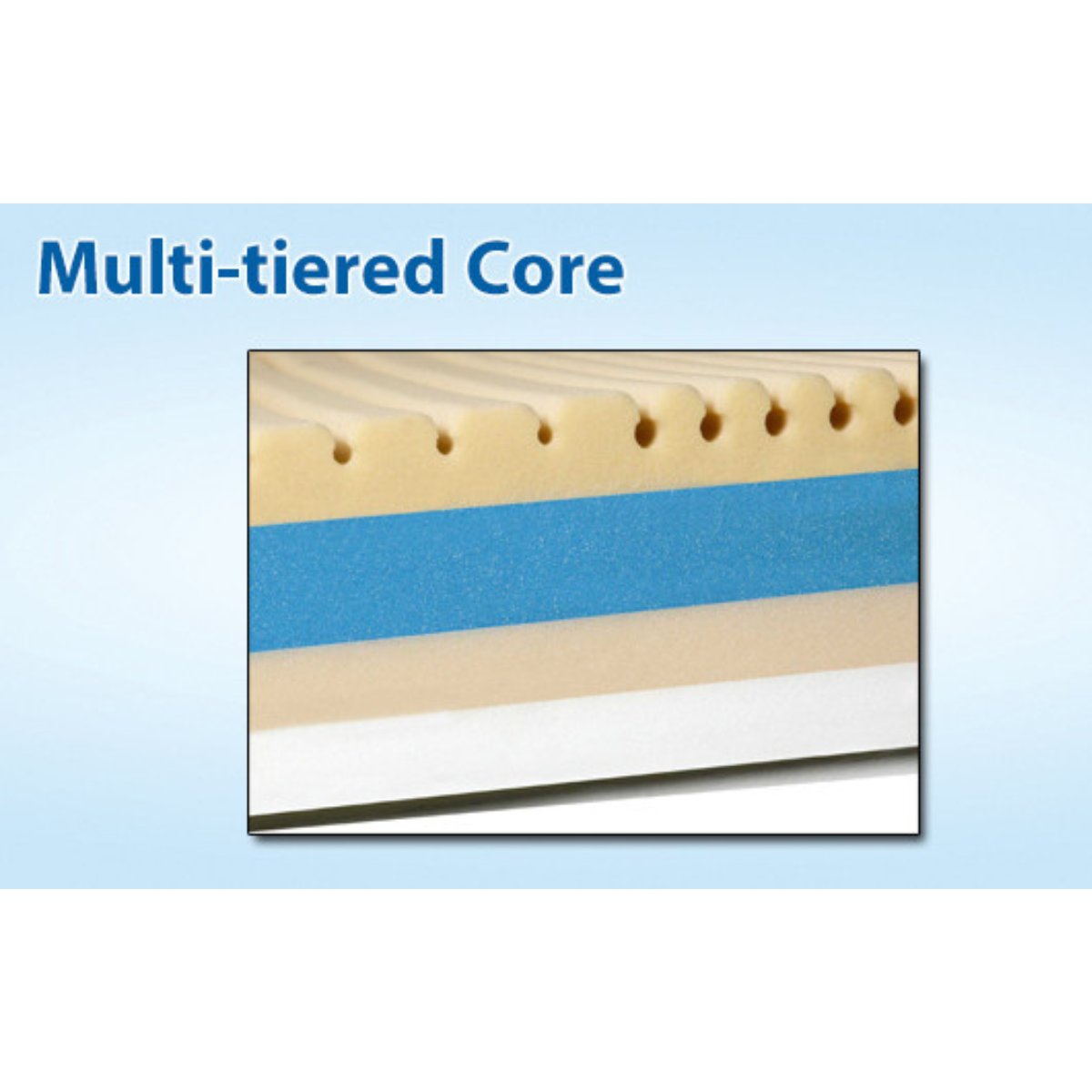

Core Structure	3 high-resiliency foam layers (progressive density)
Heel Zone	Built-in Heel Slope® taper
Airflow Channels	Ring-of-Air™ design for heat and moisture control
Cover Material	Fluid-resistant, coated nylon
Warranty	3-year non-prorated

Heavy-duty and comfortable

I was amazed at how supportive this mattress is for my brother, who needed extra bariatric support. It doesn't sink and remains firm even after hours.

Wish it had more cooling features

No complaints about comfort, just wish it had better airflow for temperature control.

Built to last

The quality is outstanding. It's clearly designed for long-term use, and it holds up very well under higher weight.

High weight capacity and no sagging

Even after months of use, there's no sagging or soft spots. Worth every penny.

Comfort and support in one

Usually we have to choose between firmness and comfort, but this mattress somehow does both.

1 2

Who is Atlas Bariatric mattress best suited for?

It’s designed for bariatric patients who need skin protection, pressure redistribution, and weight support up to 750 lbs.

What’s the benefit of the Geo-Matt® surface?

It reduces shear and friction through 800+ independently moving foam cells, improving skin integrity and comfort.

Is Atlas Bariatric a powered air mattress?

No, it’s a static foam mattress with progressive resistance and doesn’t require electricity or pumps.

Can Atlas Bariatric mattress be used in long-term care or home settings?

Yes, it’s ideal for both institutional and in-home bariatric care.

Is the cover on Atlas Bariatric mattress waterproof?

Yes, the nylon cover is fluid-resistant and easy to disinfect.

Comes with a 3 year non prorated warranty.

Span America Geo-Mattress Atlas Bariatric Mattress
