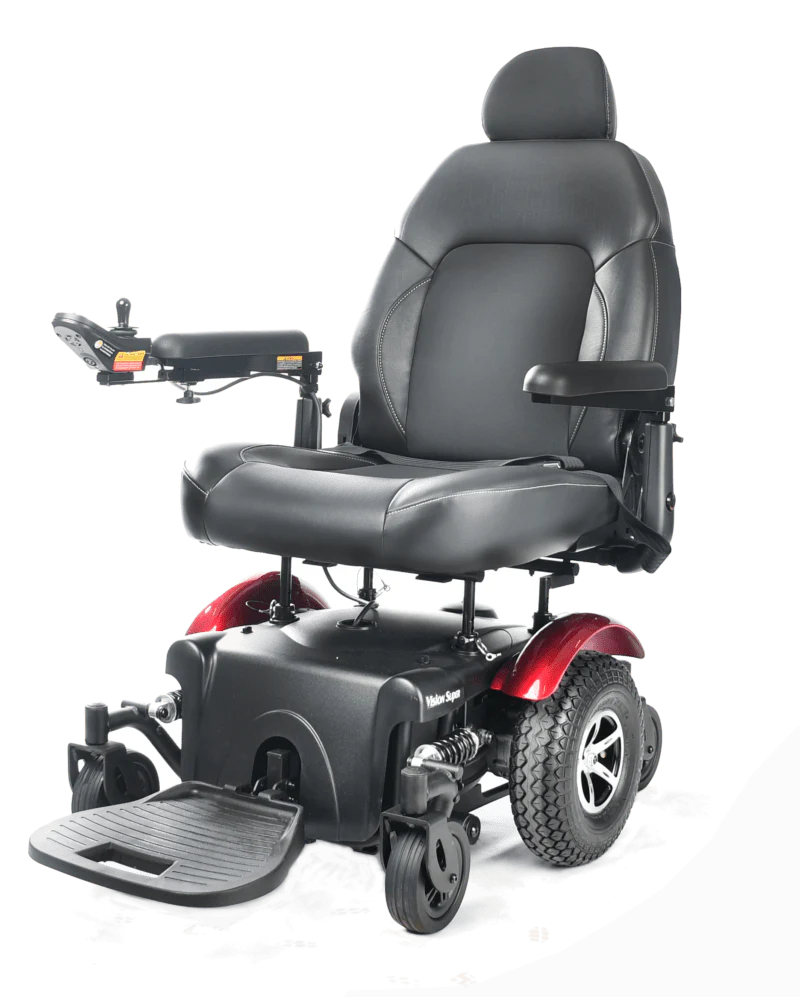

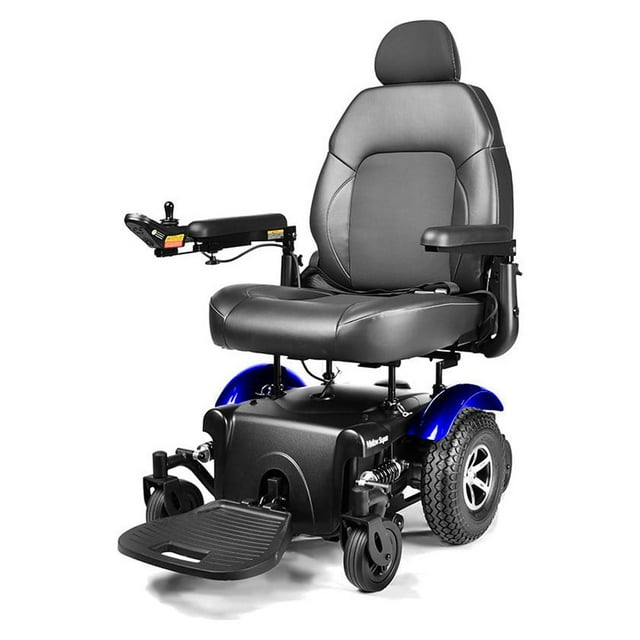

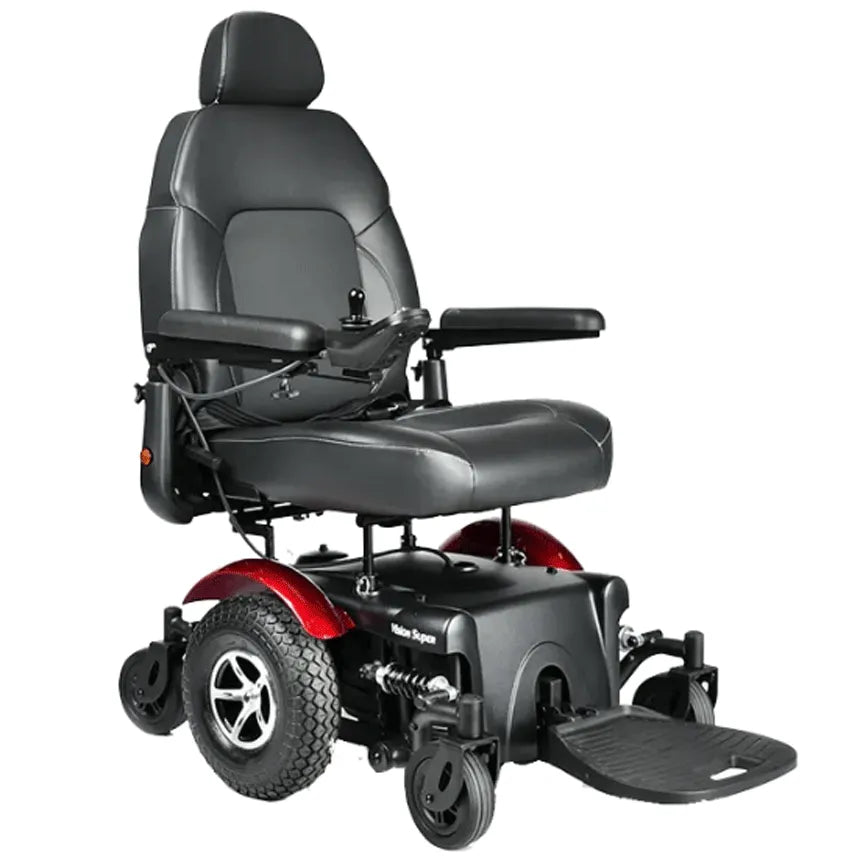

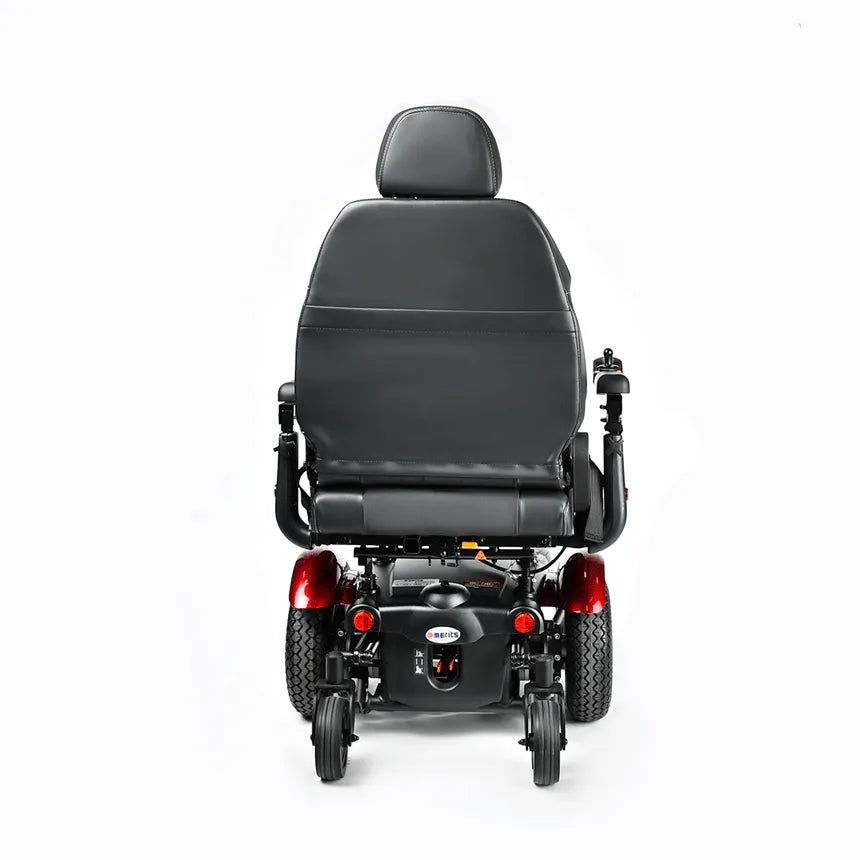

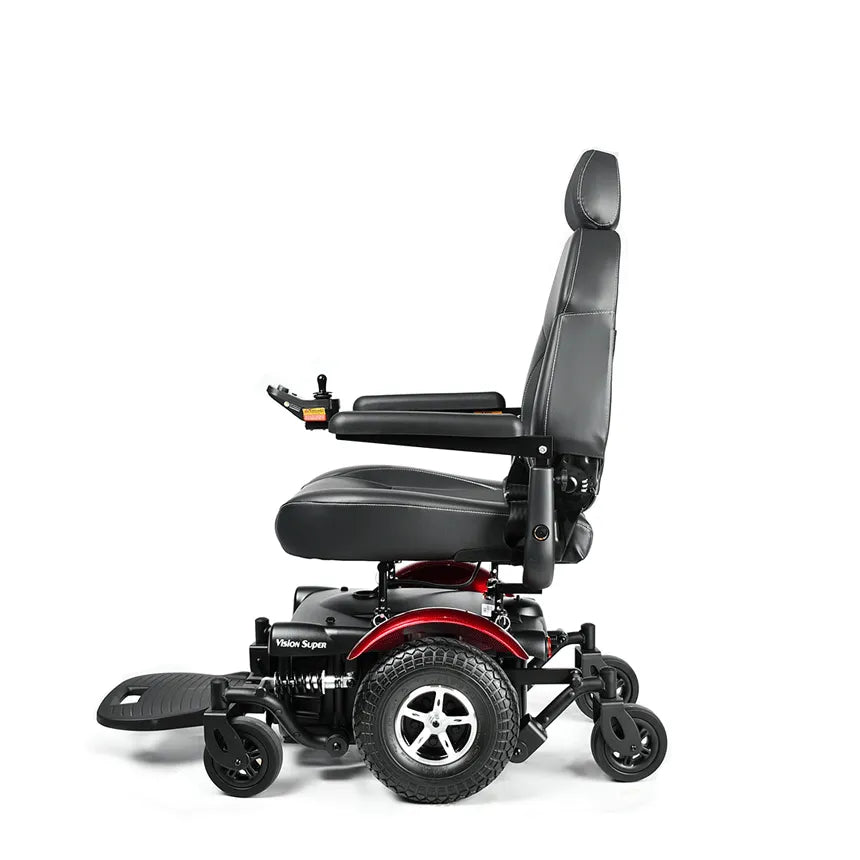

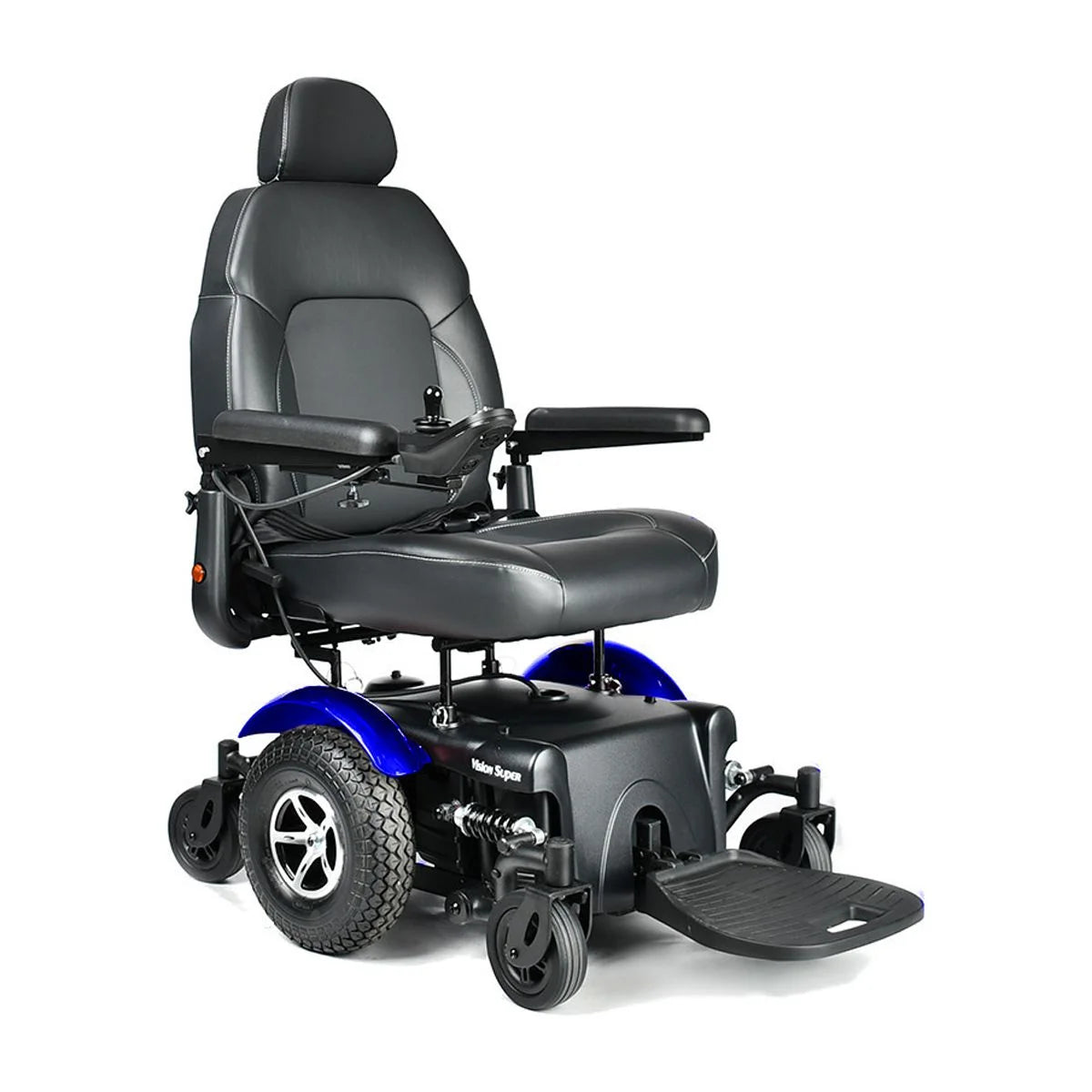

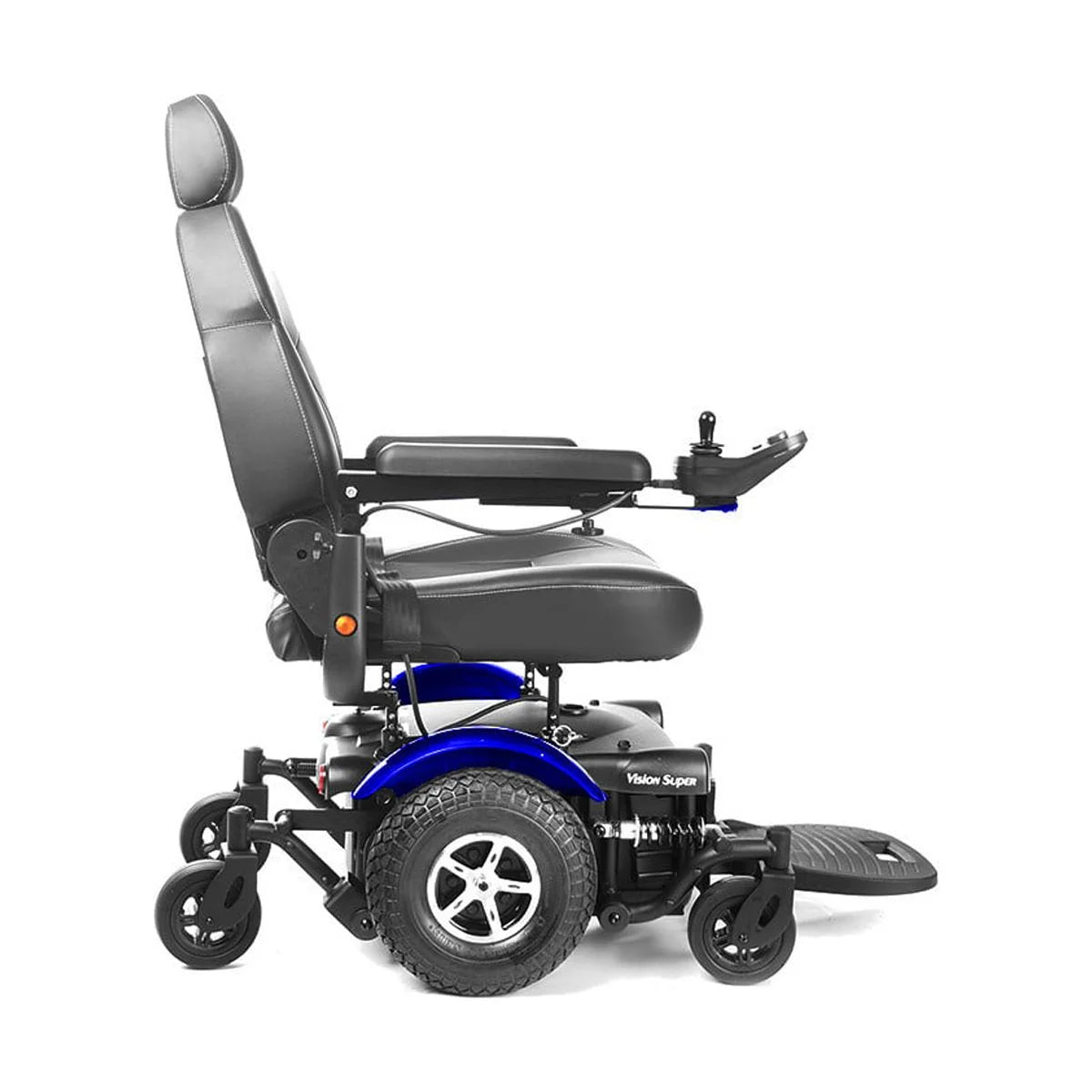

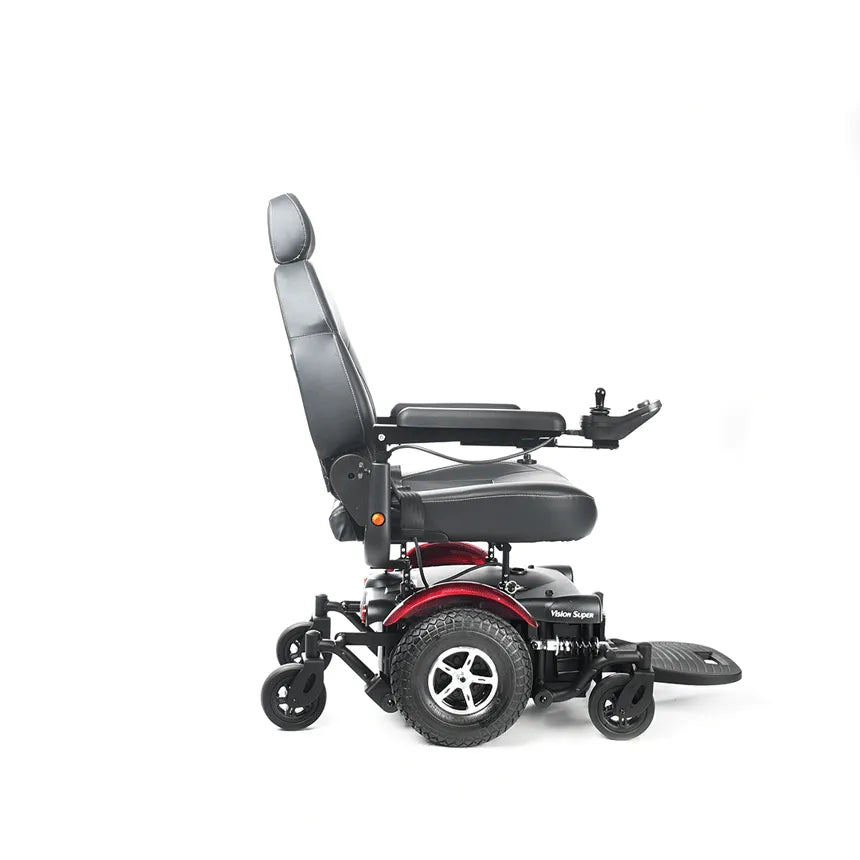

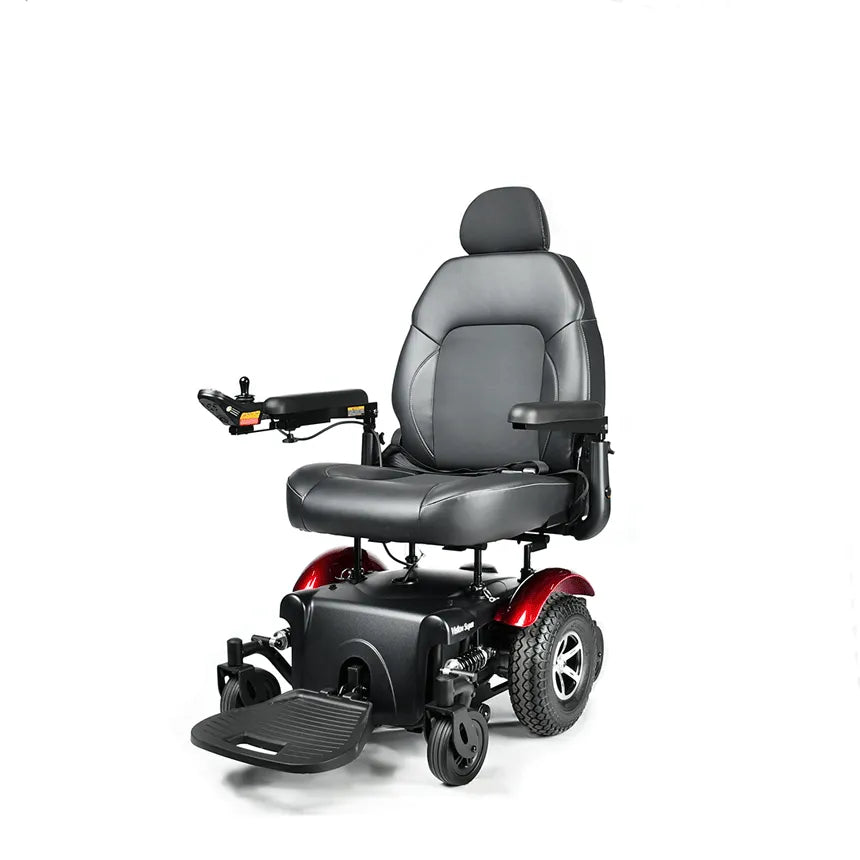

Merits Vision Super Power Chair | 450 lb Capacity Heavy-Duty Mobility

Product Details

Heavy-Duty Power Meets Agile Mid-Wheel Design

The Vision Super delivers unmatched strength with an impressive 450 lb weight capacity in a compact, mid-wheel-drive frame. Featuring full suspension, customizable captain’s seating, and optional elevating seat, this chair empowers you to move freely indoors or outdoors for up to 20 miles per charge.

✅ Key Features:

High Weight Capacity: 450 lb—ideal for bariatric users wanting stability and durability
Mid-Wheel Drive: 20–21″ turning radius for effortless indoor navigation

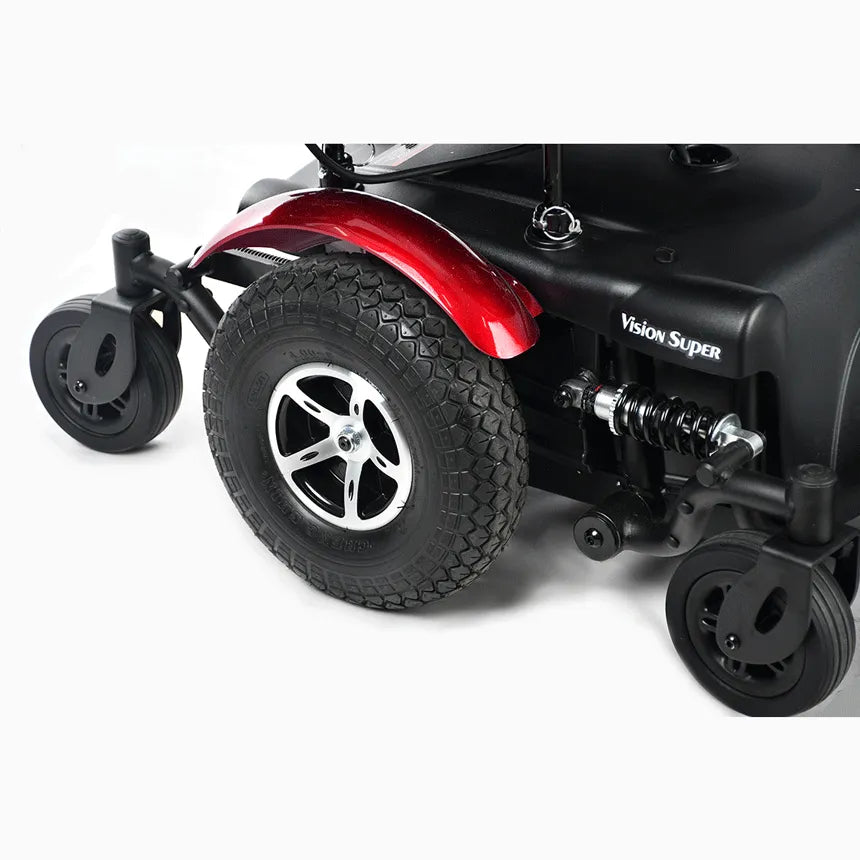

Smooth Ride: Full suspension with 12″ pneumatic tires absorbs bumps and obstacles
Power Elevating Seat: Raises seat by 10″ (to 34″ height) to reach high shelves (reduces capacity to 400 lb)
Robust Motors: Dual inline DC motors offering dependable torque and climb performance
Versatile Controls: Dynamic Shark/LiNX programmable controller with right/left joystick mounting

❤️ Everyday Benefits You'll Appreciate

Moves confidently over grass, gravel, and pavement
Tight turning capability makes indoor use effortless
Comfortable captain’s seat ideal for long outings
Elevating seat adds reach for independence at home
Low-maintenance SLA batteries with off-board charger

🛠️ Specifications

Specification	Details
Weight Capacity	450 lb (400 lb with elevating seat)
Top Speed	5 mph (8 km/h)
Travel Range	20 miles (32 km)
Turning Radius	20–21″
Ground Clearance	2.2″
Drive Wheels	12″ pneumatic
Caster Wheels	6″ front/rear solid
Scooter Dimensions (L×W)	35.4″ × 27.2″
Base Weight	243 lb (heaviest piece 121 lb)
Seat Width	20″, 22″, 24″
Seat Depth	20–22″
Seat Height	22–23.2″ (up to 34″ with elevator)
Batteries	2 × 12 V Group 22 AGM (55 Ah)
Controller	Dynamic Shark 60 A / Dynamic LiNX

📄 Manuals

Is the Vision Super power chair suitable for indoor use?

Yes, the Vision Super’s mid-wheel design and 20‑21″ turning radius allow tight indoor navigation.

Can the Vision Super handle rough terrain?

Absolutely. Full suspension and 12″ pneumatic tires provide a smooth ride outdoors.

What is the range of the Vision Super chair?

You can travel up to 20 miles on a full charge, depending on terrain and weight.

Does the Vision Super offer an elevating seat?

Yes, the optional 10″ power elevator increases seat height to 34″ (reducing capacity to 400 lb).

How durable is the Vision Super power chair?

Constructed with a heavy-duty frame, reinforced suspension, and dual motors for reliable performance.

Power Chair Warranty – Lifetime Limited

Merits Health Products, Inc. warrants the main frame against defects in material and workmanship for the lifetime expectancy of this power chair (5 years).

For one (1) year from the date of purchase, Merits will replace at their option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative in the material or workmanship: Electronic controllers, harnesses, chargers, motors. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Warranty exclusions: Tires, plastic or rubber parts, upholstery/armpads, painted surfaces, seating, bearings.

Merits Health Products, Inc. will repair or replace parts as required, provided that an authorization for such return has been acquired by an established dealer and that the part or parts in question are returned fully insured with freight prepaid to us within the prescribed period of warranty. Labor charges incurred in the installation or repair of the above mentioned parts plus all freight charges are not included in the warranty.

Merits Health Products, Inc will not warranty any parts damaged by improper installation and/or repair on the part of the individual owner’s neglect, accident or misuse, nor those parts altered or serviced by an agency not authorized by us.
